Decoders

We know model train fans are often very loyal to their favourite brand of decoders. Because they appreciate quality and reliability. But as in life, sometimes something more attractive comes along and it’s time to make a change. This is that time.


Train-O-Matic Lokommander 2 decoders are pretty complete decoders, as you will see from the list of features below.  Even though they are tiny in size, they pack all the features you would expect from a premium decoder. But as a small company using the latest technology and production process, we are able to bring you the full features in this quality for a razor sharp price.


If you like to stay ahead of the game, you like updates. With the tOm Programmer, you are able to update the firmware every time there is a new release. We regularly update our firmware, adding new features and improved functionality (really, we are not talking bug fixes!). We don’t wait months, or as some, a year before a next update is released. We also like to stay ahead of the game.

Lokommander 2 decoder series

- NMRA compliant DCC locomotive decoder

- Short (1-127) and long (128-9999) configurable addresses

- 14, 28/128 speed steps

- Maximum motor current 1000mA

- Load compensation and BEMF

- Speed set at 3 points (Vmin, Vmid, Vmax) or in tabular form

- Shunting speed

- Constant distance braking, activated on ABC/DC sector or at zero speed

- Reduced speed drive on ABC Slow Speed section

- Penduling function (Push-Pull) without or with intermediar stop

- Up to 10 dimmable auxiliary outputs

- Function output maximum 200 mA per output, maximum of all outputs 400mA

- Output Mapping to functions F0, F1-F12

- Short-circuit and over-current protection of motor and auxiliary outputs

- Bidirectional communication RAILCOM

- SUSI© and LocoWire© interface

- Outputs for Smart Power Pack (SPP ©)

- Electromagnetic uncoupler drive capability

- Upgradable software via the programmer, even with the decoder mounted in the locomotive

- Usable in H0, TT and N scale models

- Supply voltage 4-24V

- Ability to set different speeds for forward and reverse

Buy our products from one of our partners

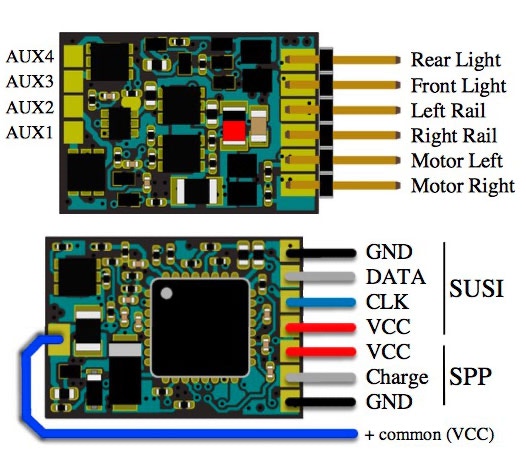

Lokommander 2 Micro (Smallest)

Size

Functions

SUSI

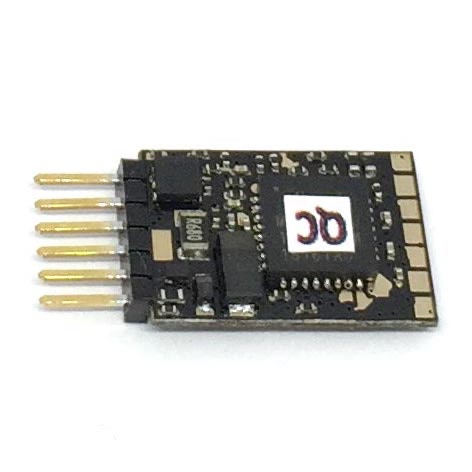

NEM 651 (6 straight pins) (6P)

Art. 02010220

14 x 9 x 3.3 mm

0.55 x 0.35 x 0.13 inch

4x AUX: Soldering pads

SUSI: Soldering pads

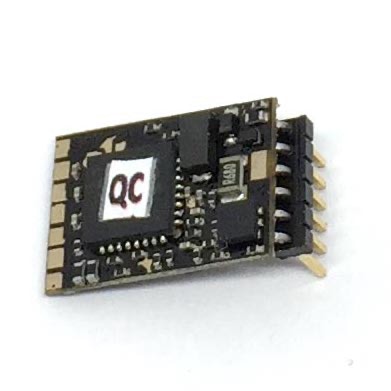

NEM 651 (6 angled pins) (6P90)

Art. 02010221

14 x 9 x 3.3 mm

0.55 x 0.35 x 0.13 inch

4x AUX: Soldering pads

SUSI: Soldering pads

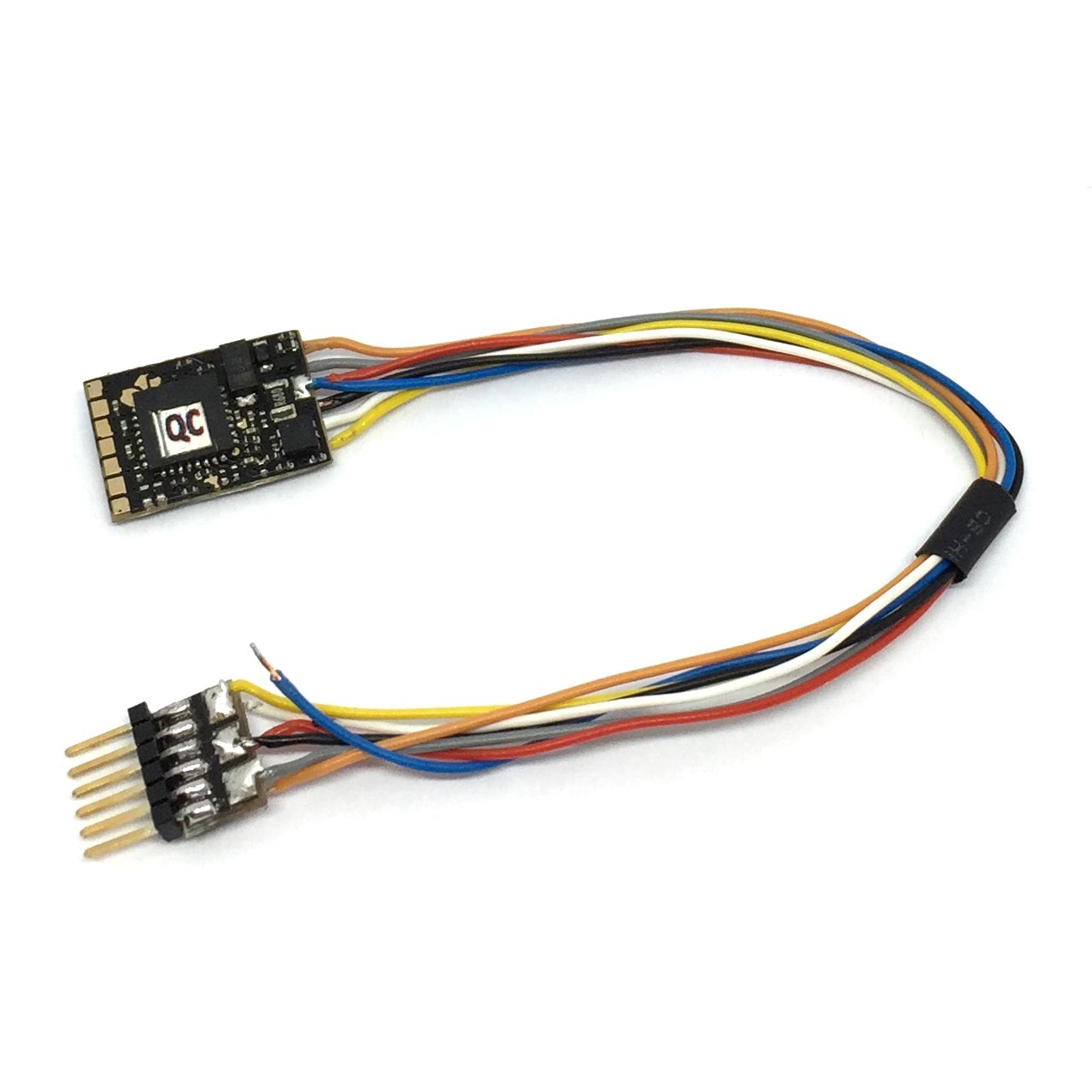

NEM 651 (7 wires + 6 pins) (W6P)

Art. 02010222

14 x 9 x 3.3 mm

0.55 x 0.35 x 0.13 inch

4x AUX: Soldering pads

SUSI: Soldering pads

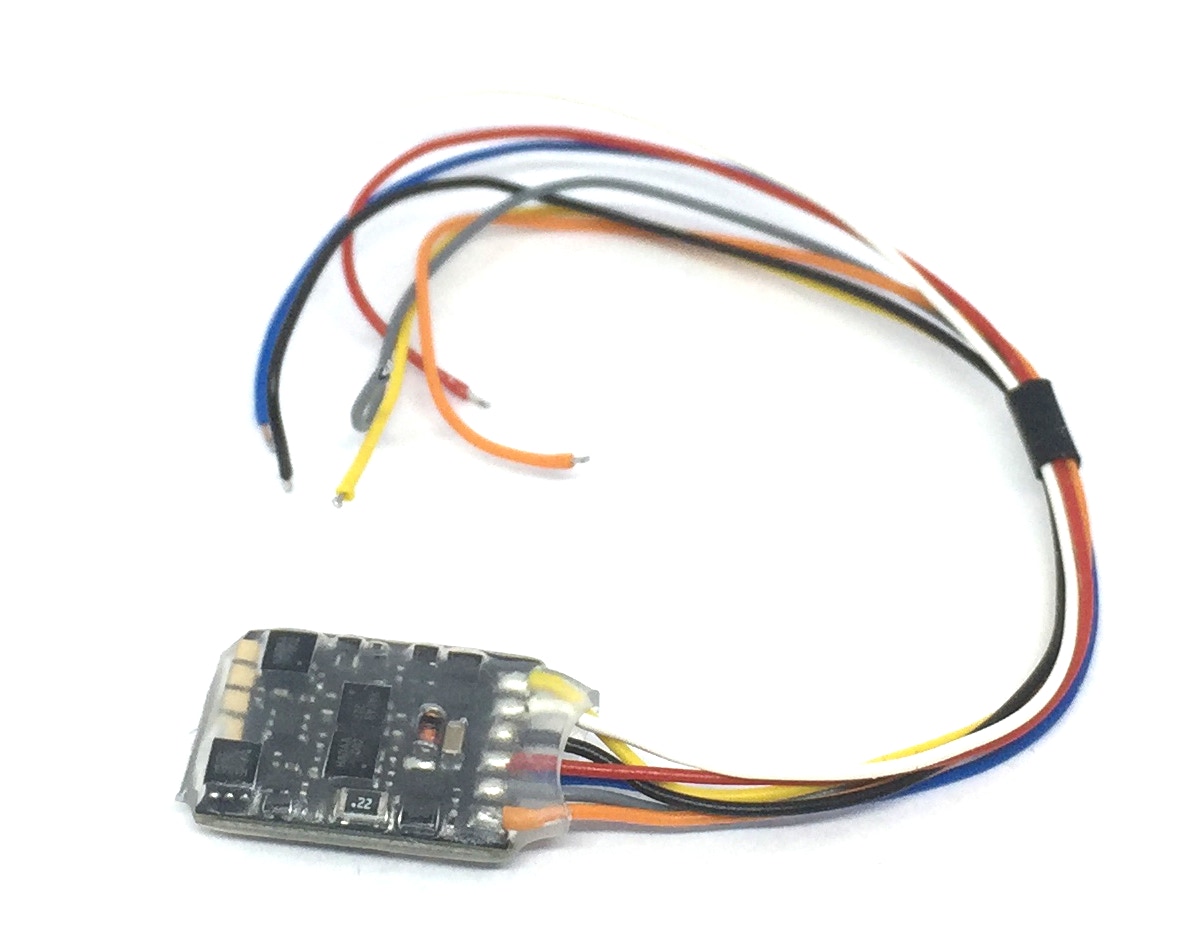

7 wires, no pins (W)

Art. 02010223

14 x 9 x 3.3 mm

0.55 x 0.35 x 0.13 inch

4x AUX: Soldering pads

SUSI: Soldering pads

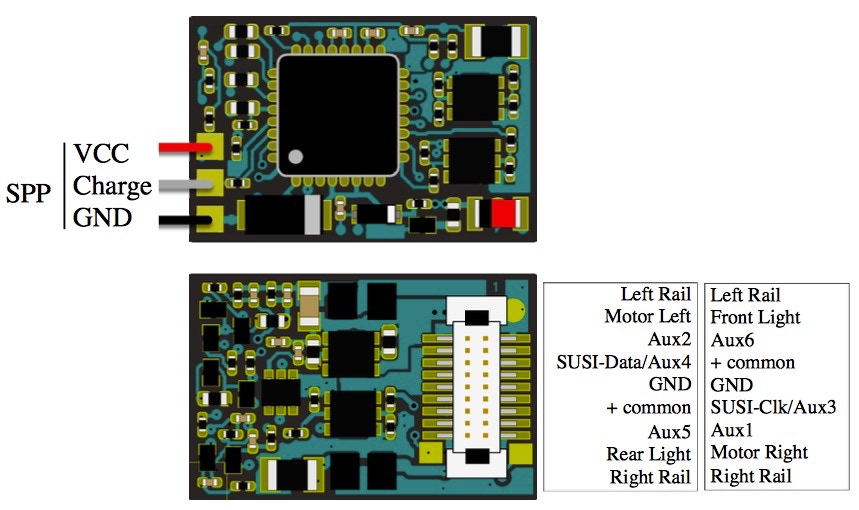

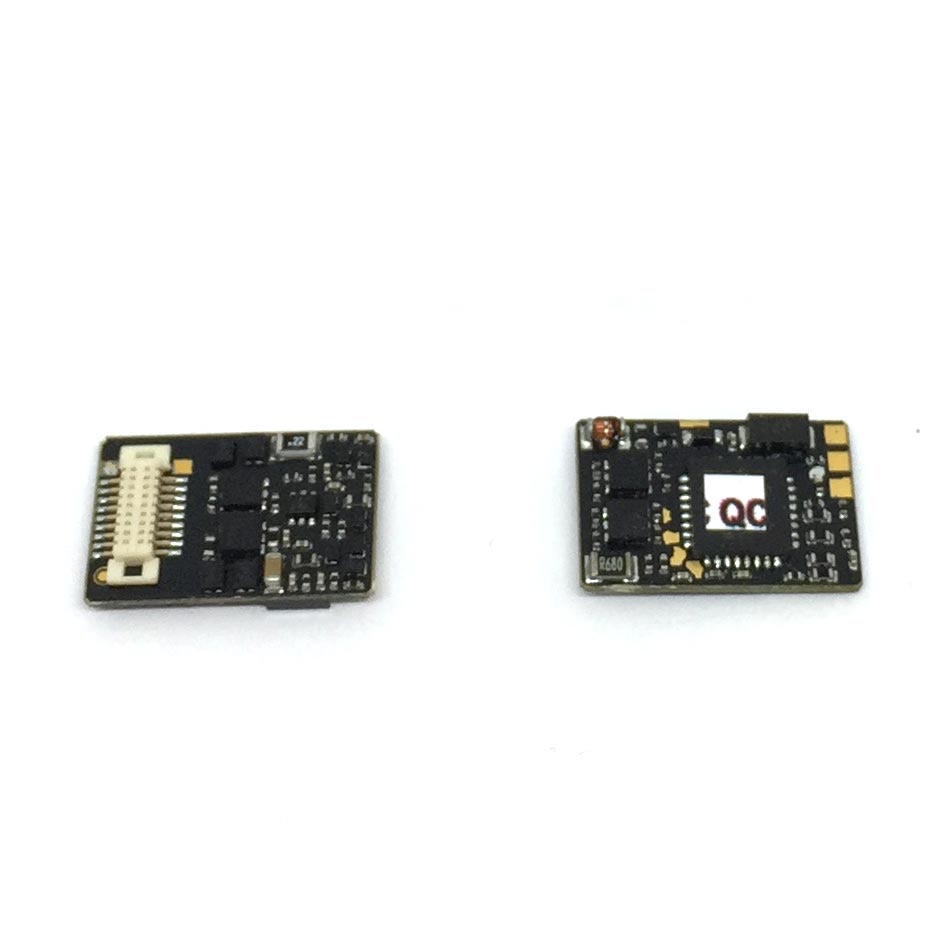

Next18

Art. 02010216

14.2 x 9.2 x 3 mm

0.56 x 0.36 x 0.12 inch

6 x AUX (of which 2 SUSI)

Integrated

Lokommander 2 Mini

Size

Functions

SUSI

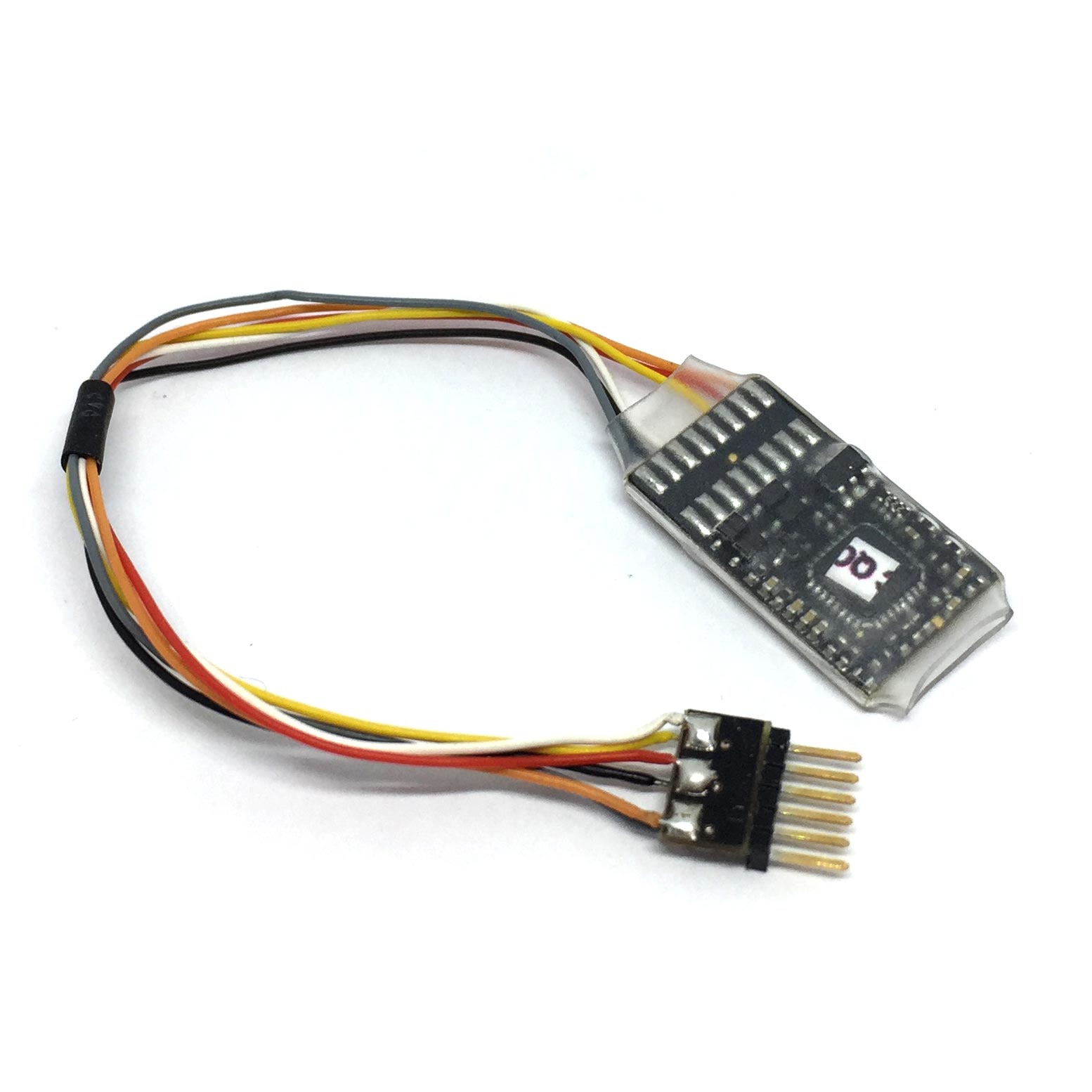

NEM 651 (6 wires + 6 pins) (W6P)

Art. 02010207

19.5 x 11 x 3.3 mm

0.77 x 0.43 x 0.13 inch

4x AUX (1 wire, 3 soldering pads)

SUSI: Soldering pads

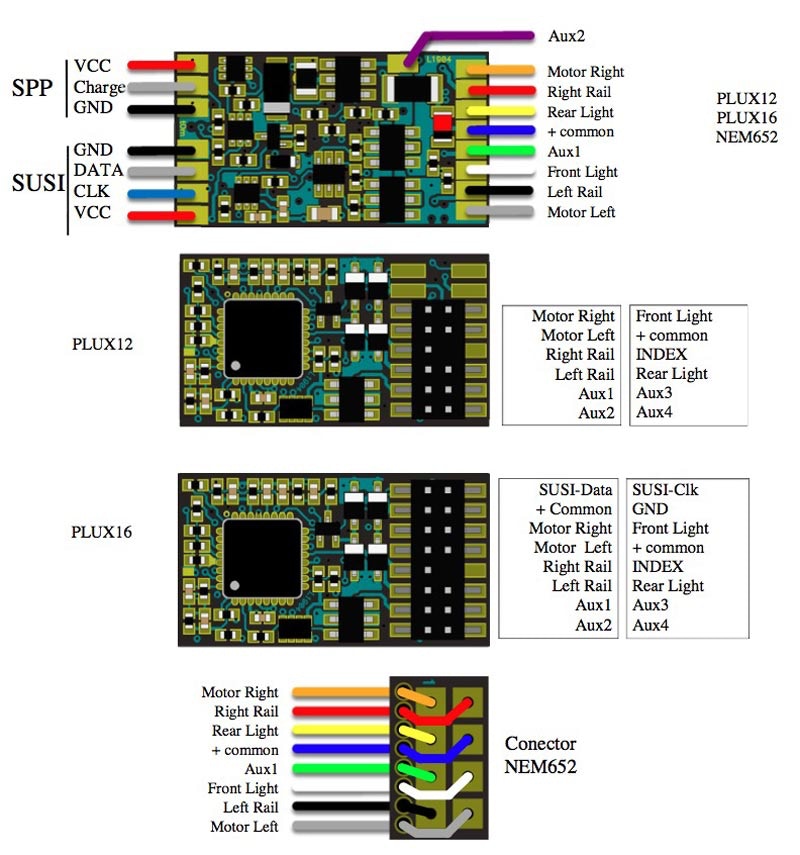

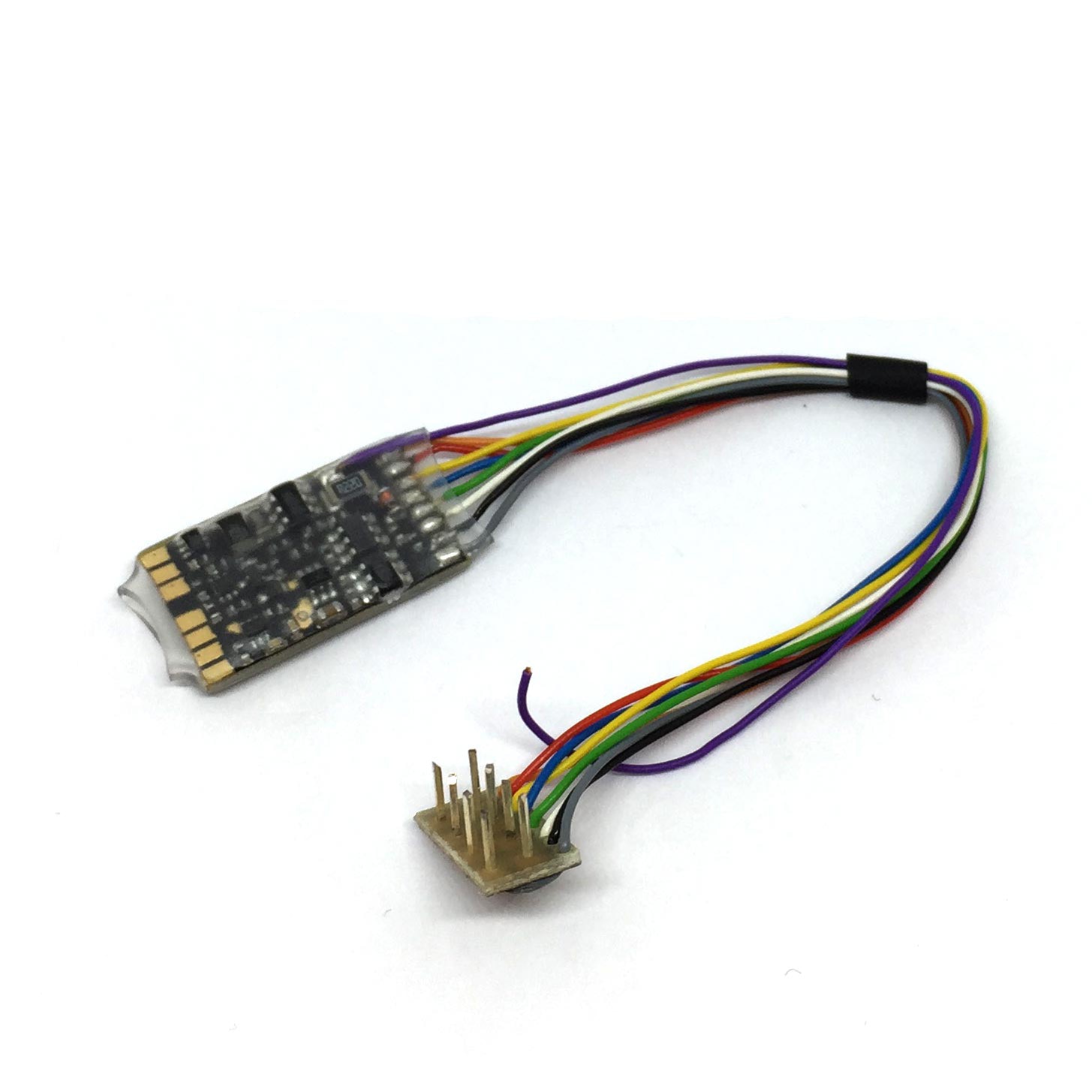

NEM 652 (9 wires + 8 pins) (W8P)

Art. 02010212

19.5 x 11 x 3.3 mm

0.77 x 0.43 x 0.13 inch

4x AUX (1 wire, 3 soldering pads)

SUSI: Soldering pads

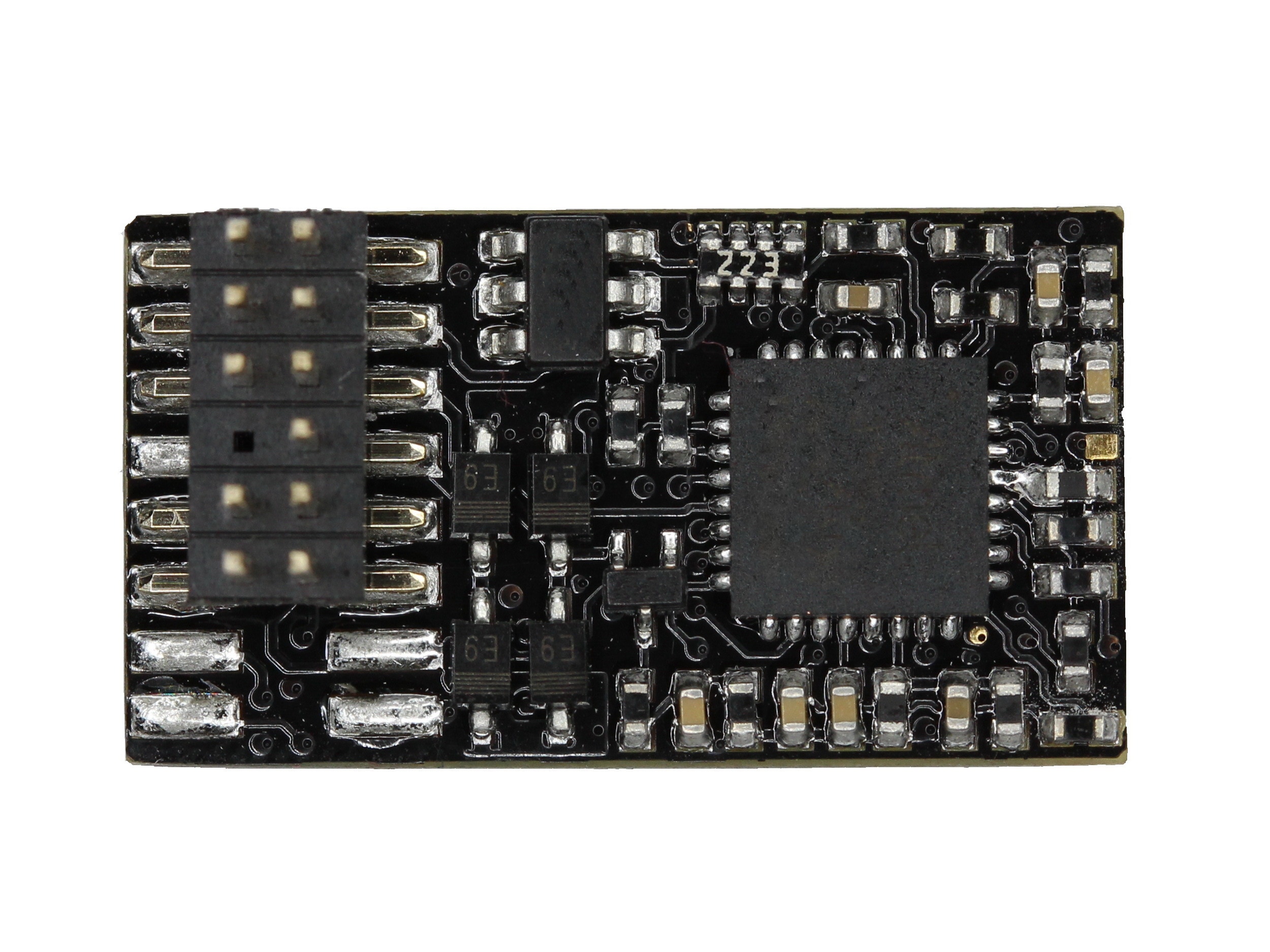

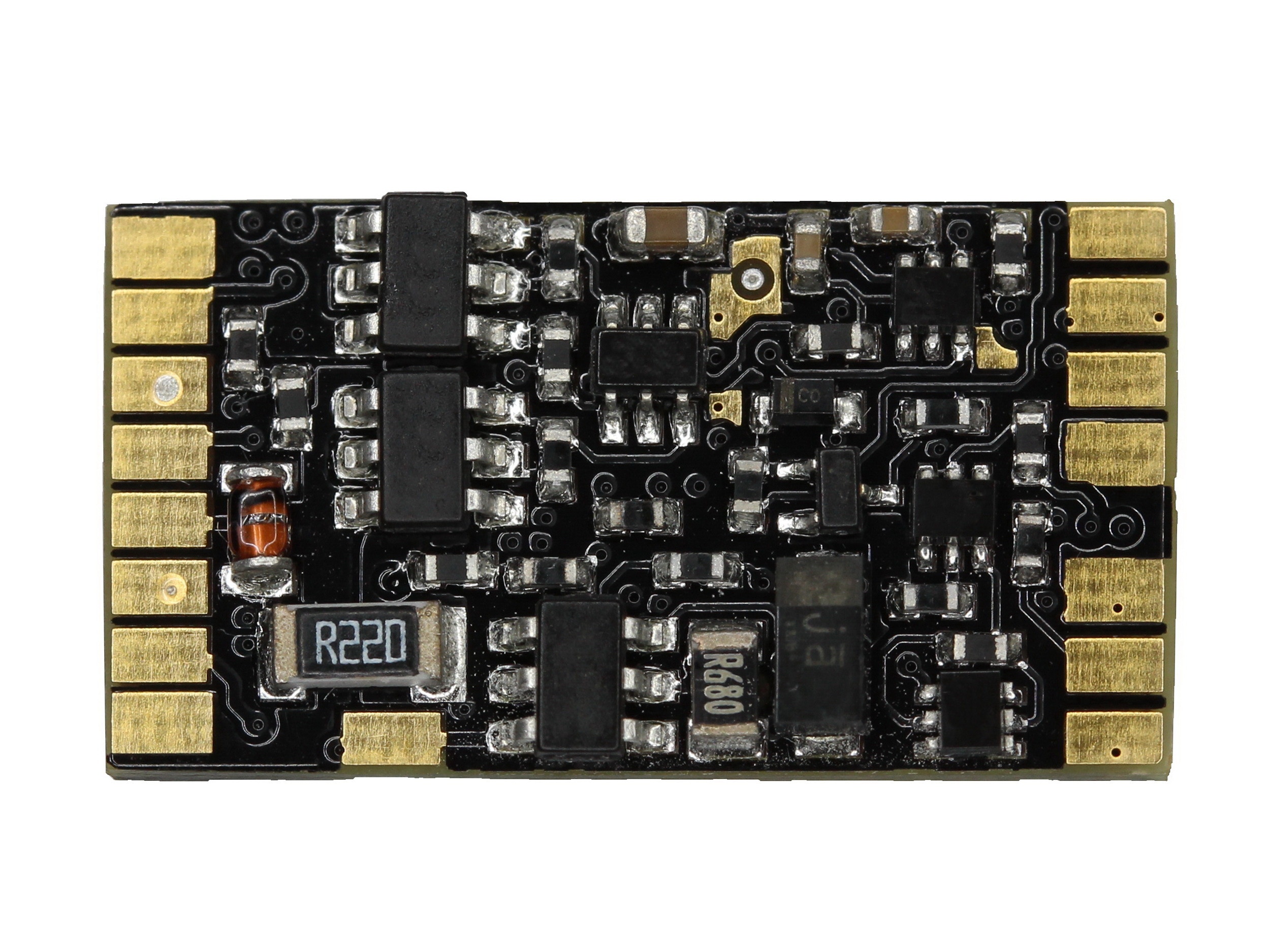

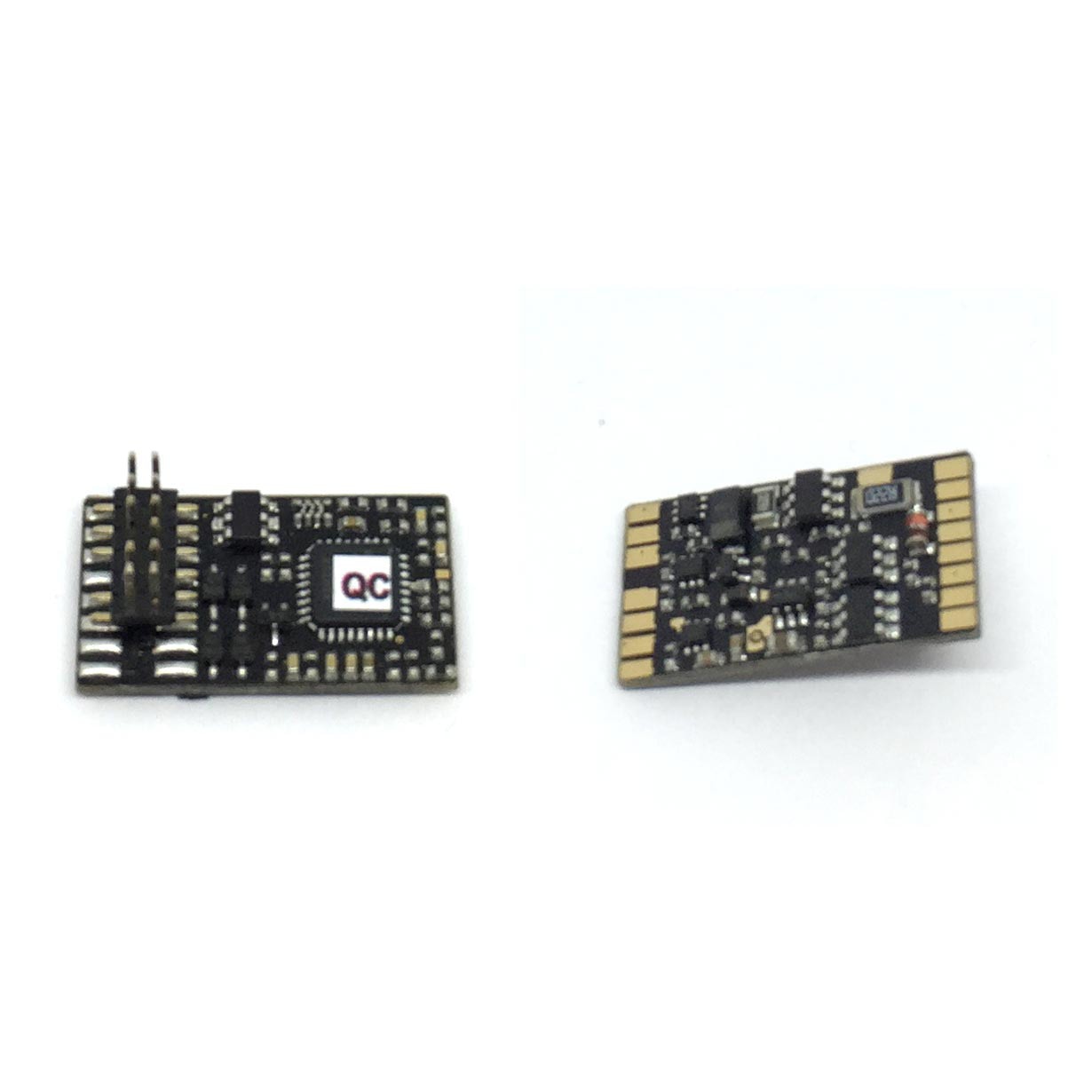

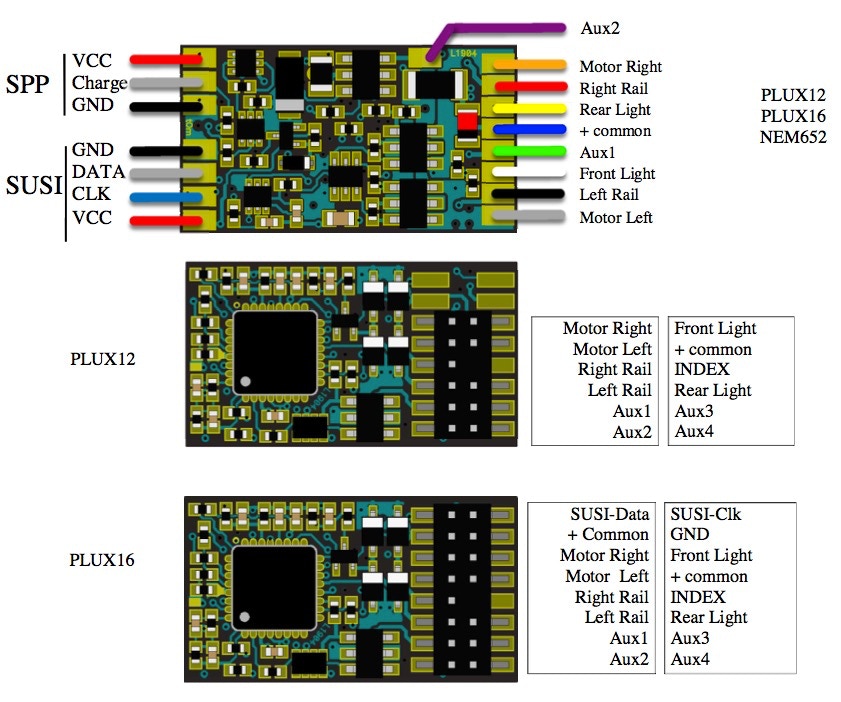

PluX12 (P12)

Art. 02010210

19.5 x 11 x 3 mm

0.77 x 0.43 x 0.12 inch

6 x AUX (of which 2 SUSI)

SUSI: Soldering pads

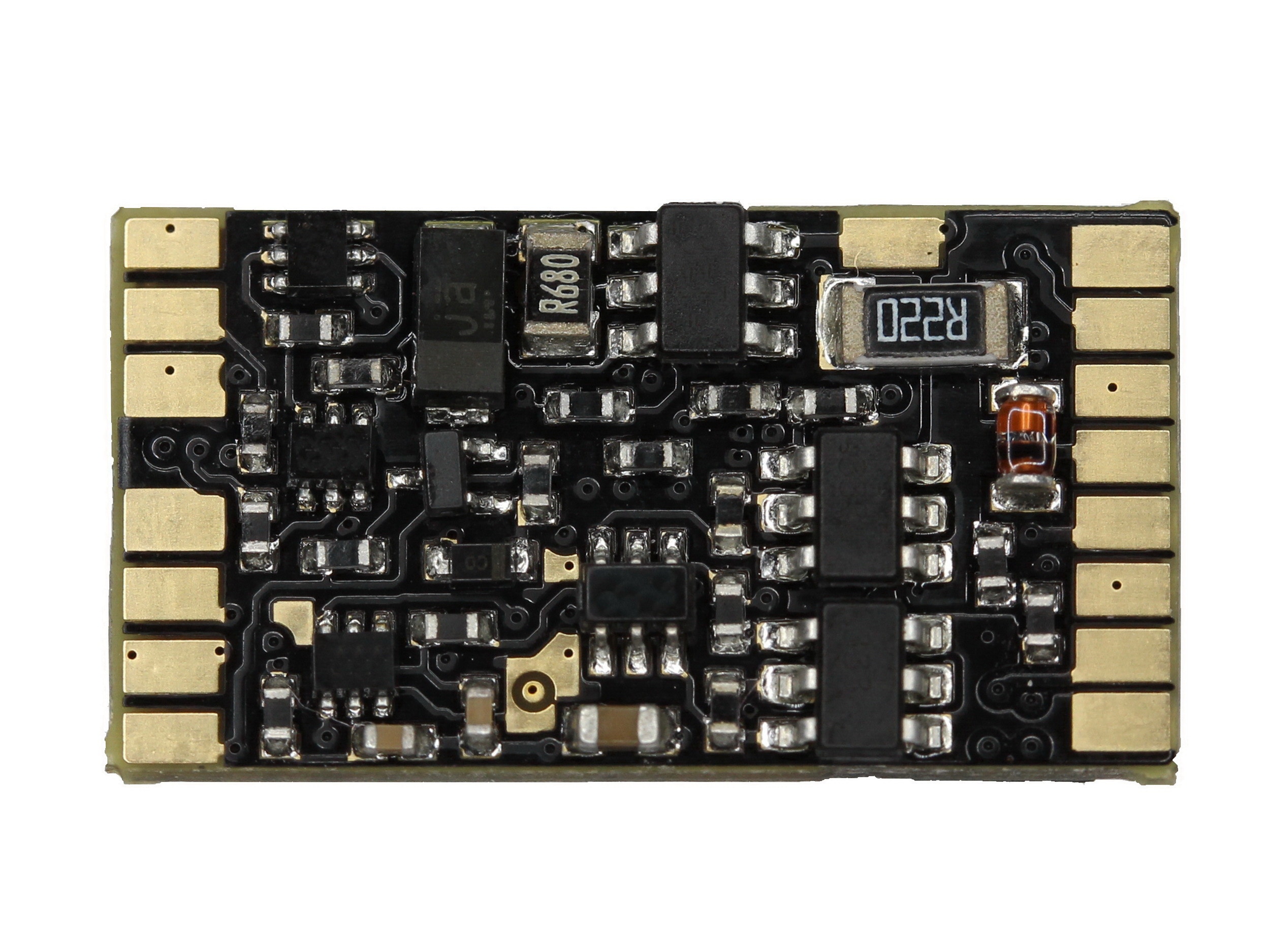

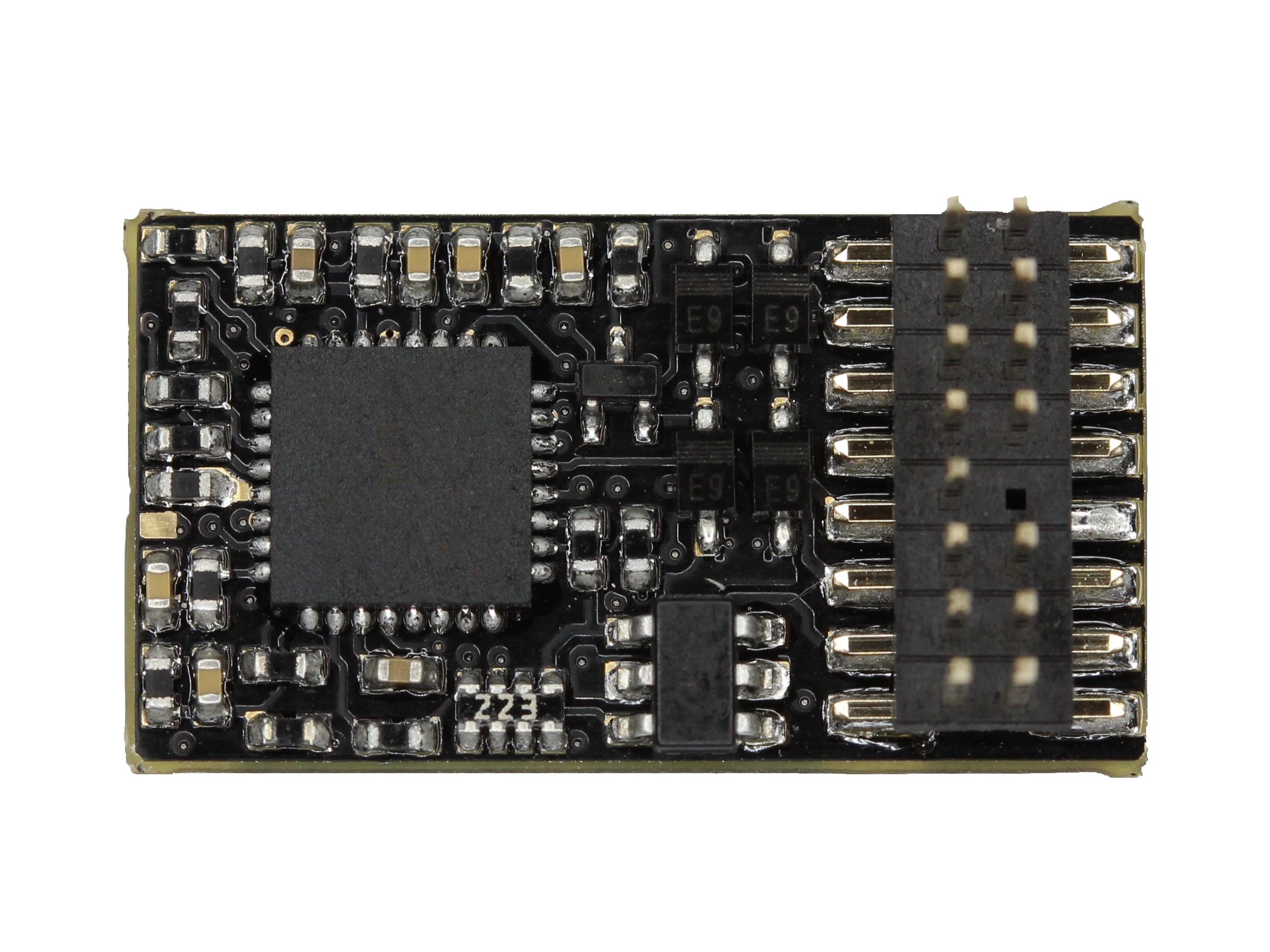

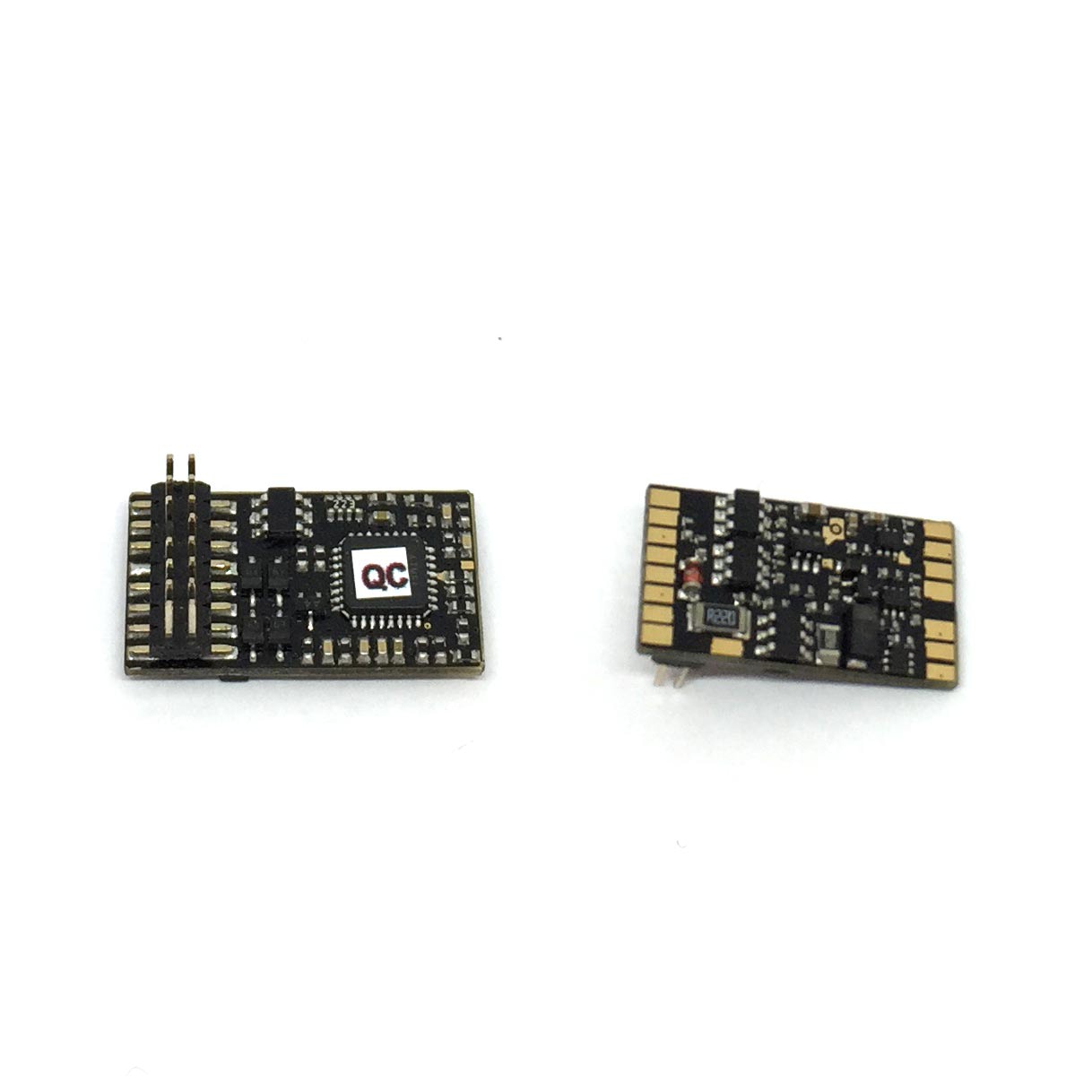

PluX16 (P16)

Art. 02010211

19.5 x 11 x 3 mm

0.77 x 0.43 x 0.12 inch

6 x AUX (of which 2 SUSI)

SUSI: Soldering pads

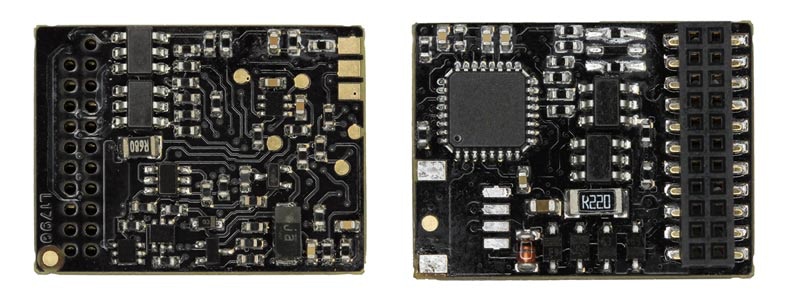

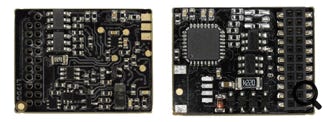

MTC21 (M21)

Art. 02010208

20 x 15.3 x 5 mm

0.79 x 0.6 x 0.2 inch

6 x AUX (of which 2 SUSI)

SUSI: Soldering pads

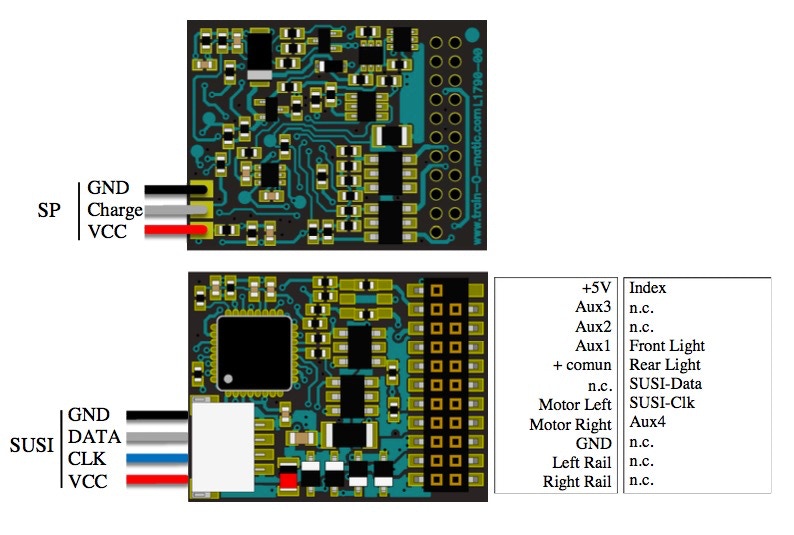

MTC21 + SUSI connector (M21S)

Art. 02010209

20 x 15.3 x 5 mm

0.79 x 0.6 x 0.2 inch

6 x AUX (of which 2 SUSI)

SUSI: plug

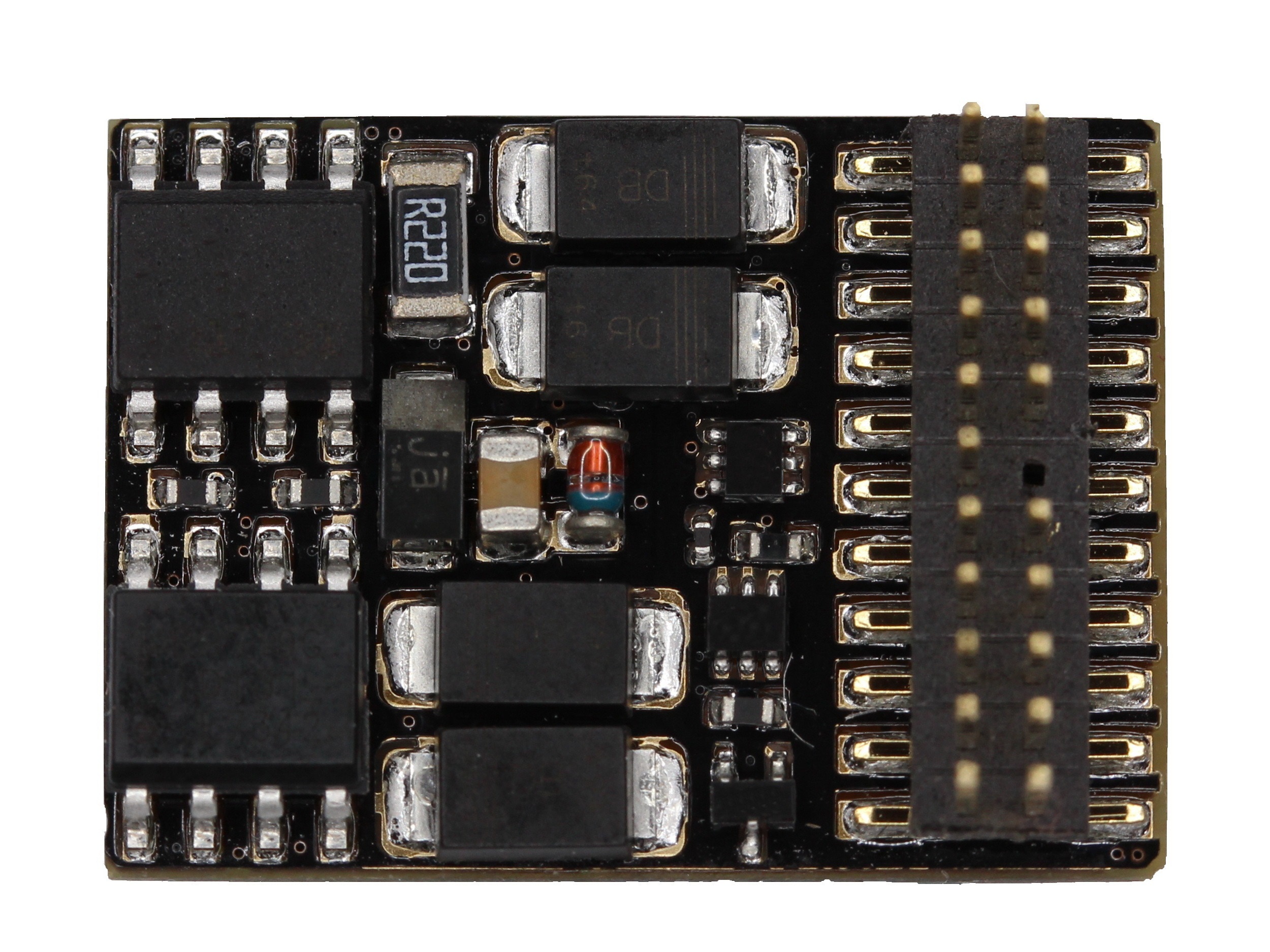

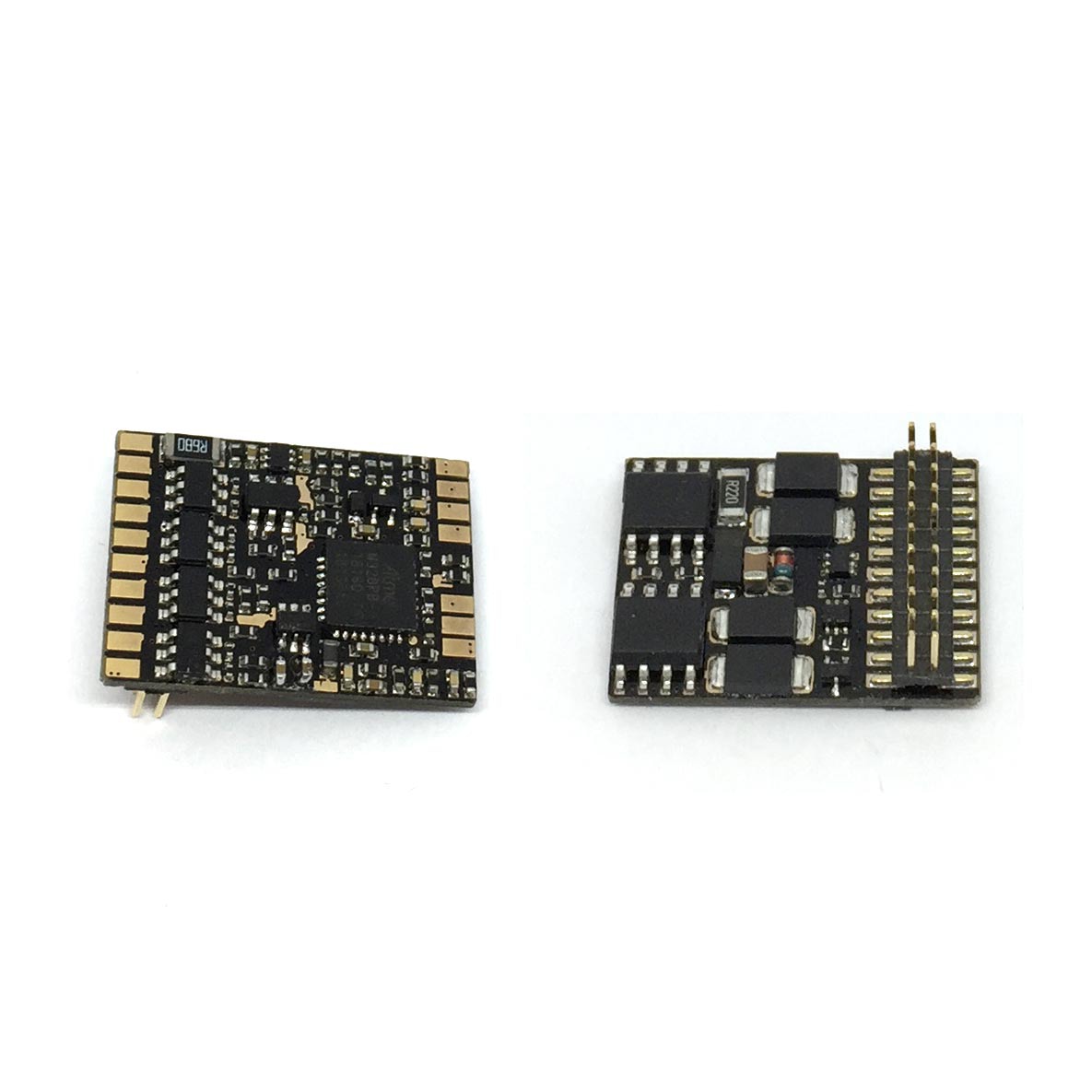

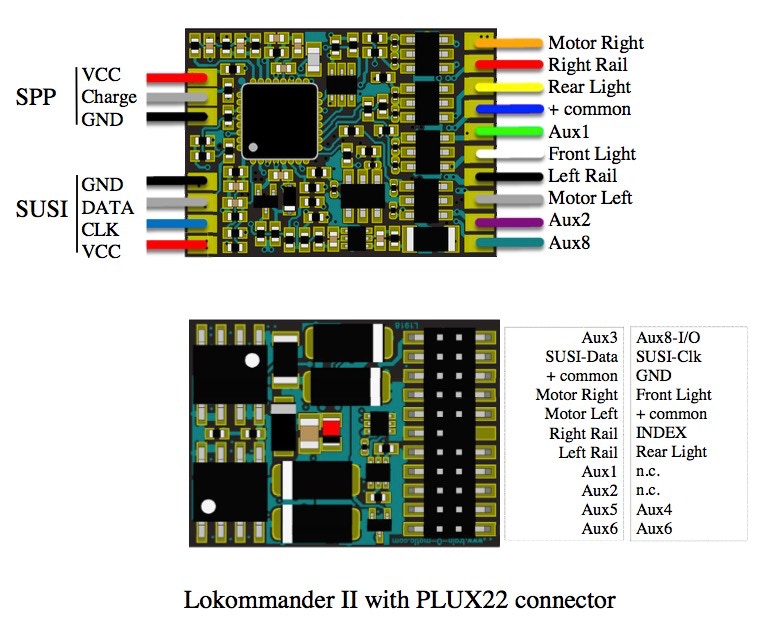

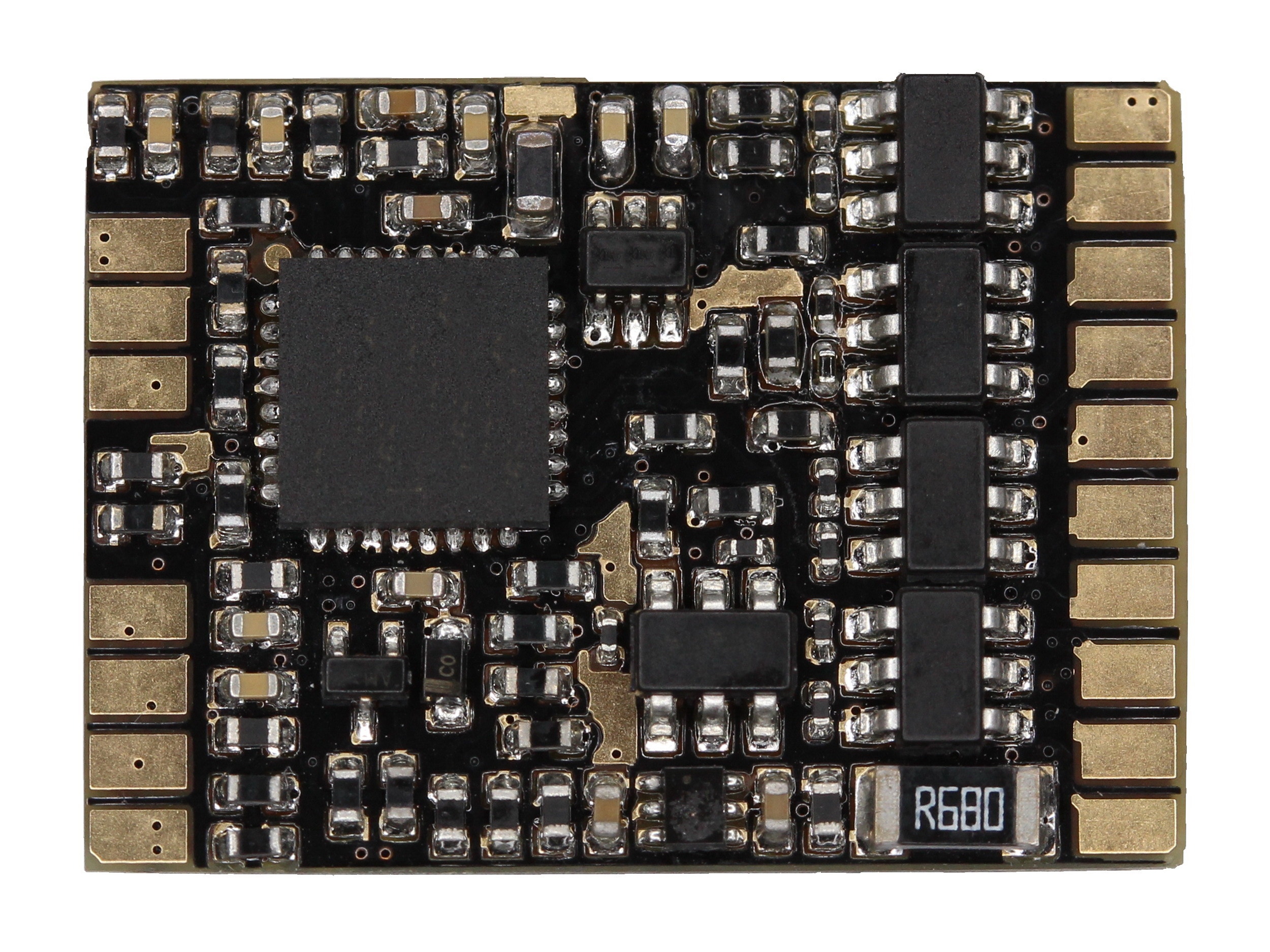

PluX22 (P22)

Art. 02010217

10 x AUX (of which 2 SUSI)

SUSI: Soldering pads

20.5 x 15 x 3.2     mm

0.81 x 0.59 x 0.13 inch

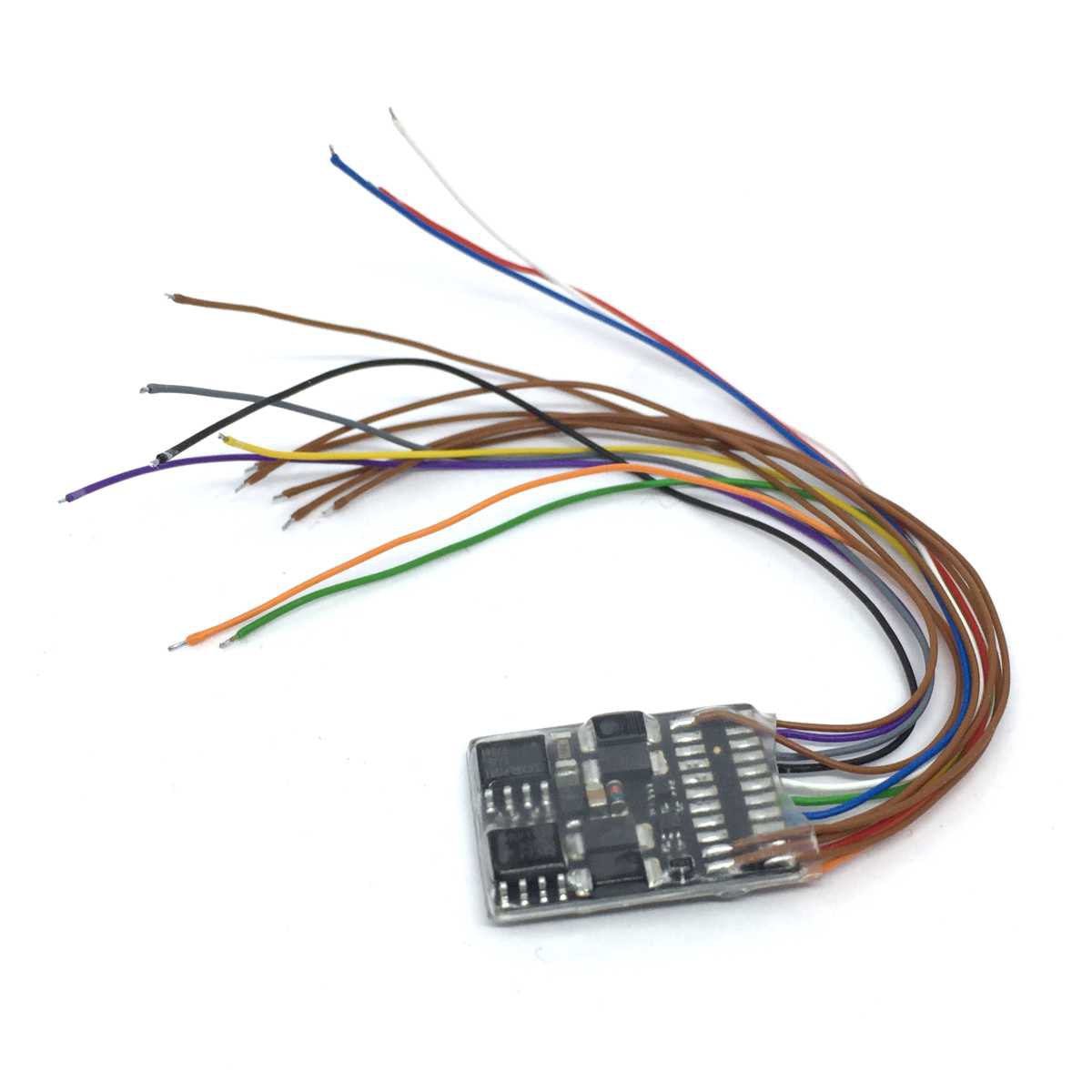

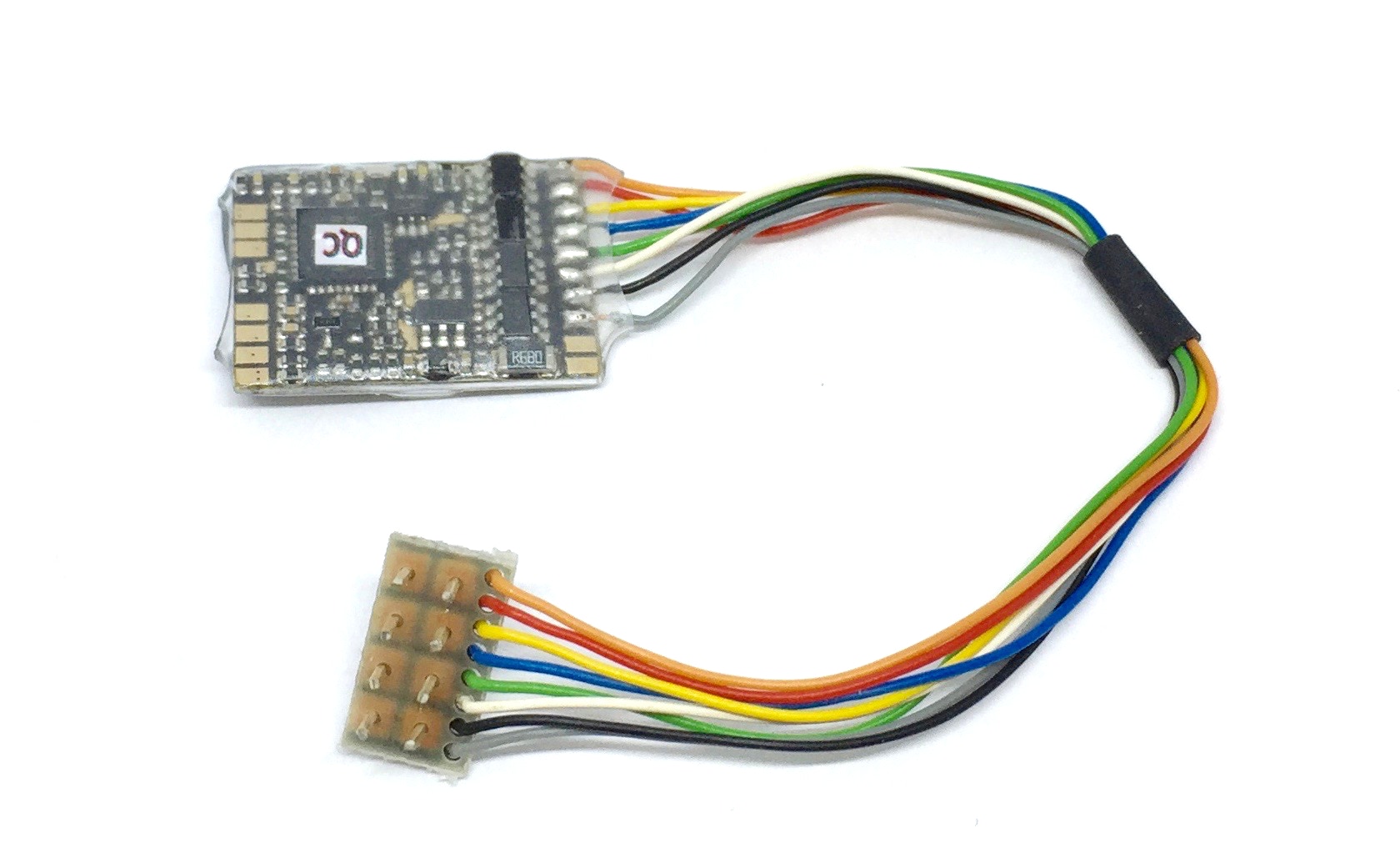

NEM652 with wires (W22)

Art. 02010218

20.5 x 15 x 3.2     mm

0.81 x 0.59 x 0.13 inch

SUSI: Soldering pads

10 x AUX (of which 2 SUSI)

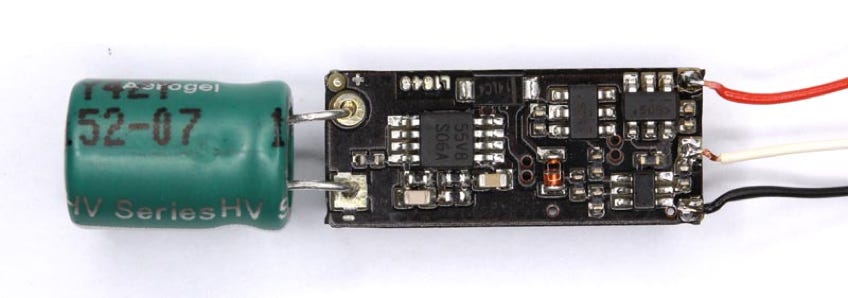

Smart Power Pack (SPP) Energy buffer

Our very affordable Smart Power Pack comes with a supercapacitor, giving you several seconds of extra power to keep on running on dirty tracks.


Connects to all Train-O-Matic decoders, ESU decoders with connection for a PowerPack, Lenz Gold with USP connection and any decoder supporting the three wire connection for an energy buffer.


For instructions, follow the manual of your decoder. For Train-O-Matic see higher on this page.


Detailed info on the SPP Powerpack section on this site.

.
