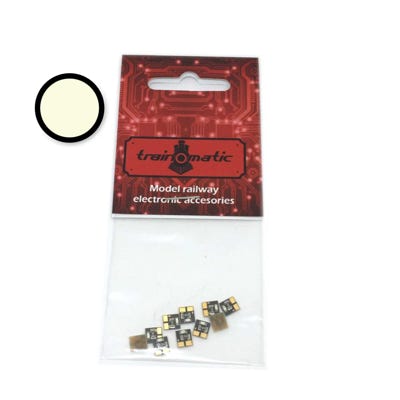

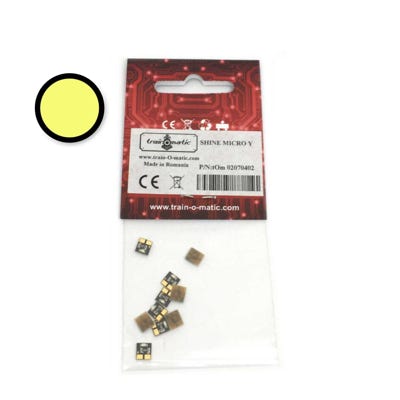

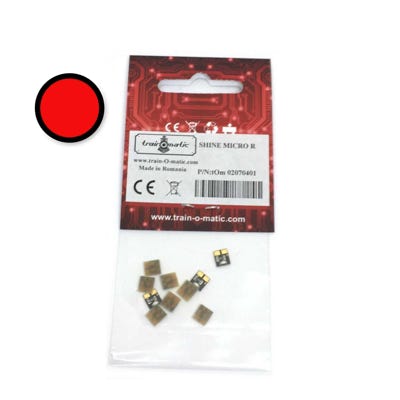

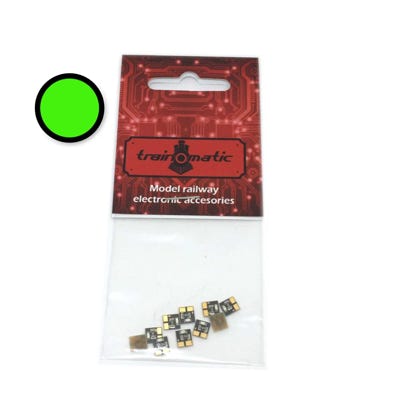

A single LED with resistors in several colours. Can be connected to a power source from 6 to 24 Volt, thank to the fitted resistor. Comes as a ready to use set. Connect + and - wires to the indicated solder pad on the small electronics board.
Amount of LED per PCB: 1
Length: 5.2 mm
Width: 4.7 mm
Thickness: 1.5 mm
Amount per package: 10
ANALOGUE Works directly to any 6-24V analogue power source
DIGITAL Can be connected to the light and function output wires of a decoder, but not directly to the track.
02070301 Red

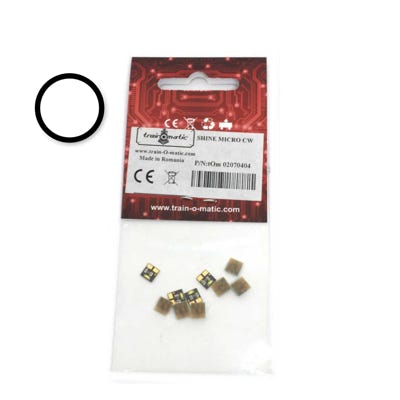

02070304 Cold white
02070302 Yellow
02070305 Warm white
02070303 Green

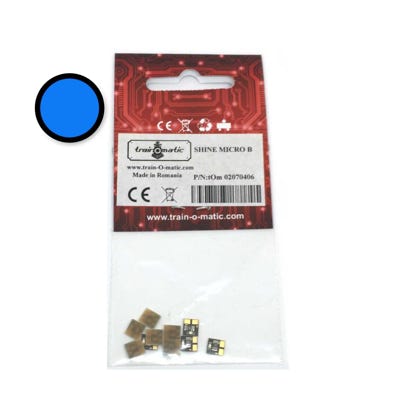

02070306 Blue
Our light strips are an easy way to add light to your carriages and your layout.

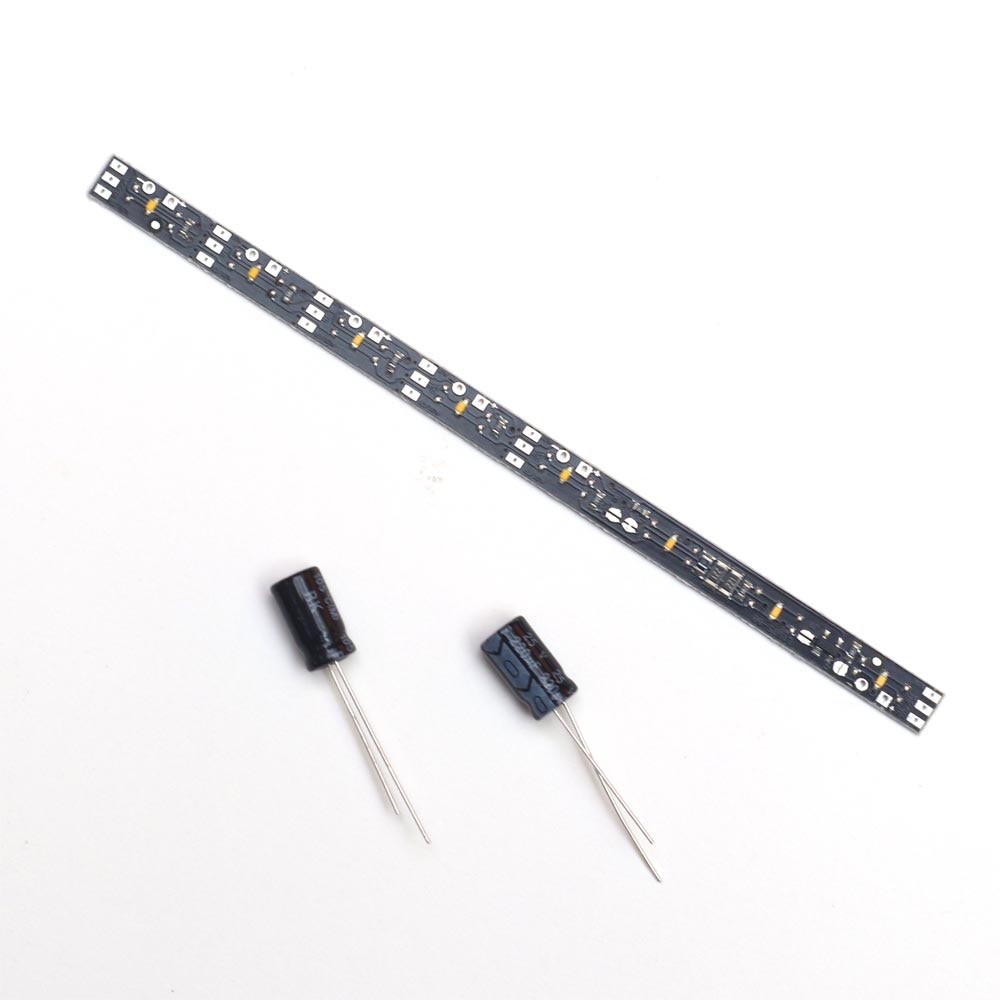

All light strips come with two capacitors of each 220 uF/25V.
by Train-O-Matic.
These can be cut in sections. The cut sections can not be re-connected with each other.

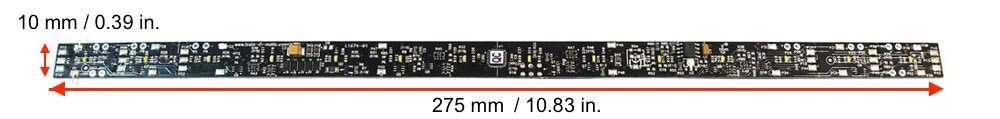

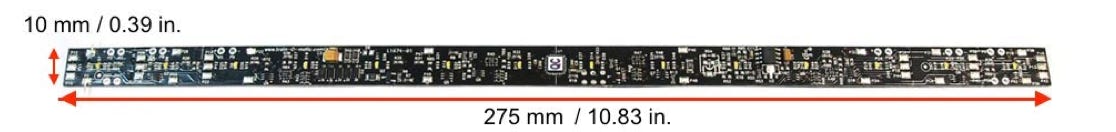

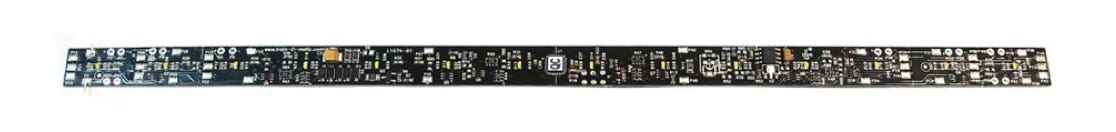

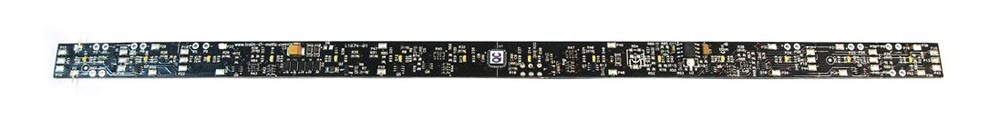

Amount of LED’s: 14
Length: 275 mm / 10.83 in.
Width: 10 mm / 0.39 in.
Shortest possible section: 197 mm / 7.76 in.
ANALOGUE works as well with digital powered track. When there is power on the track, the lights will turn on.
DIGITAL has an onboard fully functional decoder and its own CV address. It has up to 14 individually controllable outputs connected to LEDs. Every LED can be individually switched on/off. Two of the outputs can drive tail lights (not included, but also available from Train-O-Matic).
by Train-O-Matic.
These can be cut in sections. The cut sections can not be re-connected with each other.

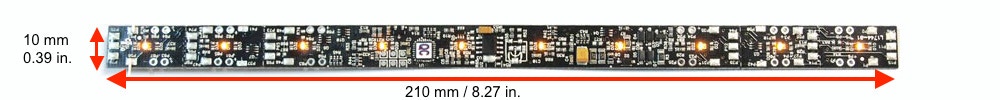

Amount of LED’s: 10

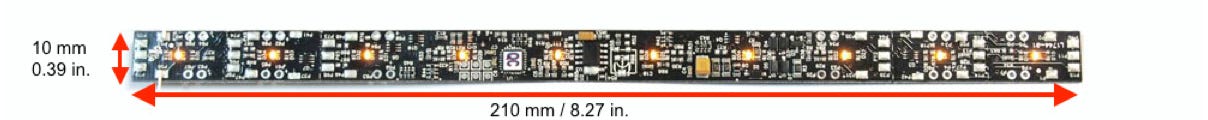

Length: 210 mm / 8.27 in.
Width: 11 mm / 0.43 in.
Shortest possible section: 130 mm / 5.12 in.
Length each cut section: 20 mm / 0.79 in.
Current consumption at 16V: Max 40mA
Supply Voltage: 6-24 Vdc / 4-16 Vac
ANALOGUE works as well with digital powered track. When there is power on the track, the lights will turn on.
DIGITAL has an onboard fully functional decoder and its own CV address. It has up to 10 individually controllable outputs connected to LEDs. Every LED can be individually switched on/off. Two of the outputs can drive tail lights (not included, but also available from Train-O-Matic).
by Train-O-Matic.
These can be cut in sections. The cut sections can not be re-connected with each other.

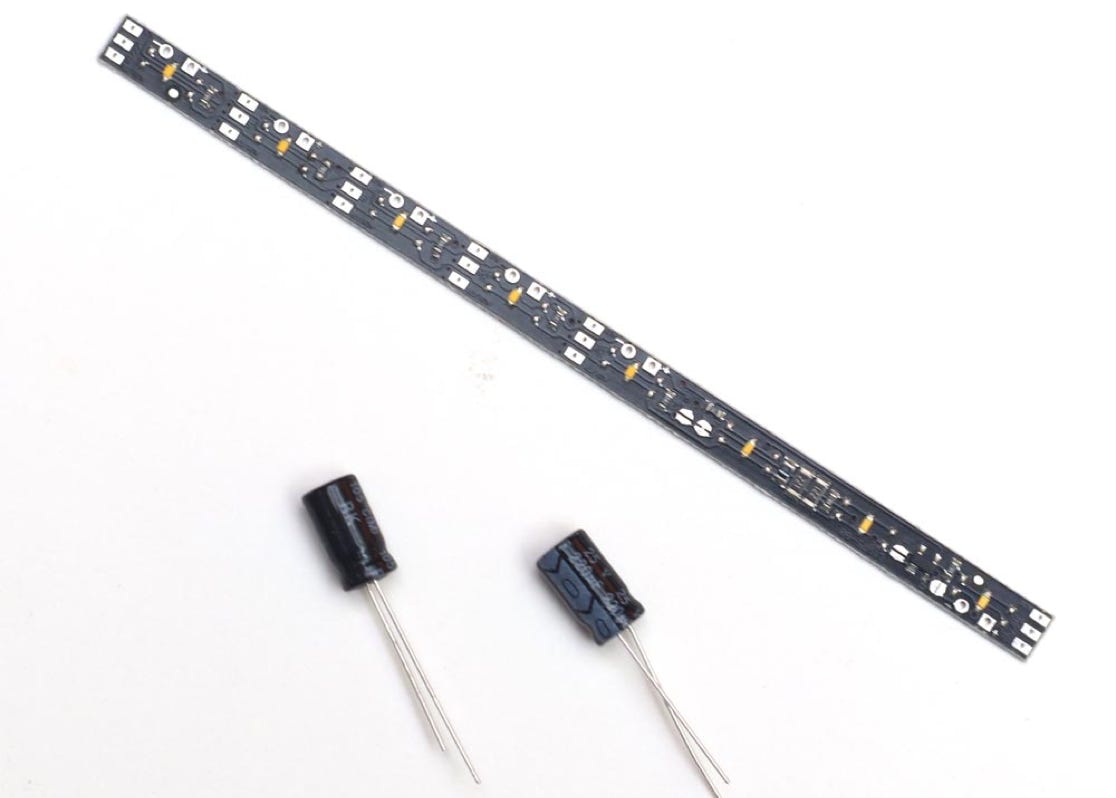

Amount of LED’s: 8
Length: 120 mm / 4.72 in.
Width: 6 mm / 0.24 in.
Shortest possible section: 57.5 mm / 2.26 in.
Length each cut section: 15 mm / 0.59 in.
ANALOGUE works as well with digital powered track. When there is power on the track, the lights will turn on.
AVAILABLE MAX INTERIOR LIGHT STRIPS
Analogue
02070315 Plus Maxi Digi Cool White
02070321 Shine Plus Maxi Ana Warm White
02070316 Shine Plus Maxi Digi Yellow
Digital
02070314 Shine Plus Maxi Digi Warm White
02070315 Shine Plus Maxi Digi Cool White
02070316 Shine Plus Maxi Digi Yellow
ANALOGUE
02070320 Shine Plus Midi Ana Warm White
02070324 Shine Plus Midi Ana Cool White
DIGITAL
02070317 Shine Plus Midi Digi Warm White
02070318 Shine Plus Midi Digi Cool White
02070319 Shine Plus Midi Digi Yellow
ANALOGUE
02070327 Shine Plus Mini Ana Warm White
02070328 Shine Plus Mini Ana Cool White
02070334 Shine Plus Mini Ana Yellow
•
